rNAS-6X
mini-itx NAS case
Fully 3d printed
〰️
Toolless
〰️
Fully 3d printed 〰️ Toolless 〰️
6 HDD BAYS+
6 bays for 3.5’’ HDDs with direct fan cooling, plus 2 for 2.5’’ SSDs.
Completely modular and toolless, you won’t need a single screwdriver to assemble or maintain your NAS.
MODULARITY
EASY TO PRINT
Fully 3d printed, no metal screws, standoffs, or third-party parts needed.
At under 19L, the case is not only compact, but also so strong and sturdy you won’t believe it’s 3d printed.
COMPACT
FULLY FEATURED
QUICKLY SWAP COMPONENTS
Whether you need to swap a hard drive, PSU or even the entire motherboard, just remove a few thumbscrews and covers to access them.
DUAL SLOT-EXPANSION CARD
Freely use your PCIe slot with an expansion card or even a dual-slot low-profile video card.
FULL-ATX POWER SUPPLY
No need for expensive SFX power supplies. If your power supply needs replacing, then just untighten the sliding screw and swap for a new one in just a few mins.
SLIDE AND LOCK

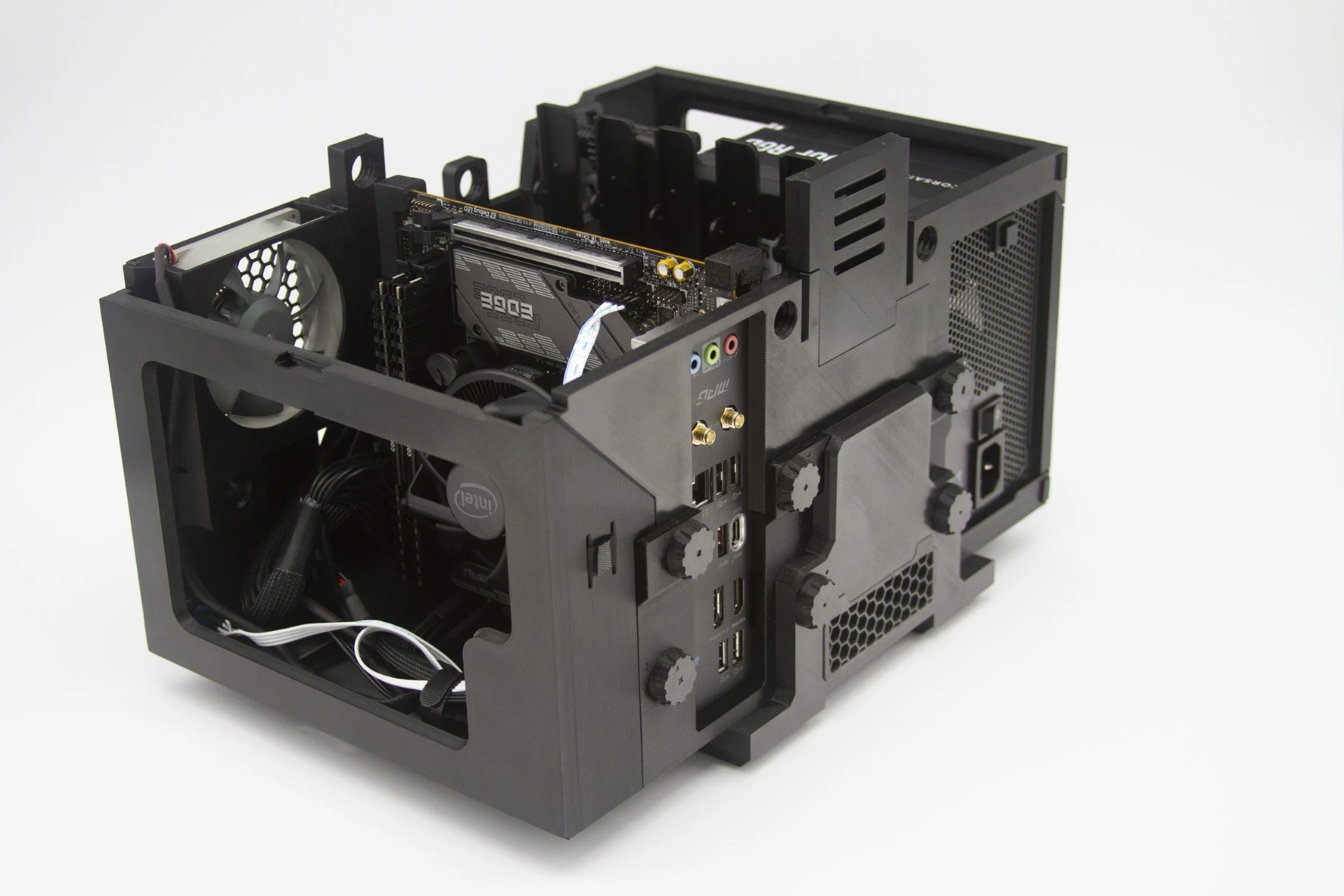

Installing a motherboard has never been easier… just slide it in, and use the locking pin to secure it. Plenty of space for your cooler too (105 mm).

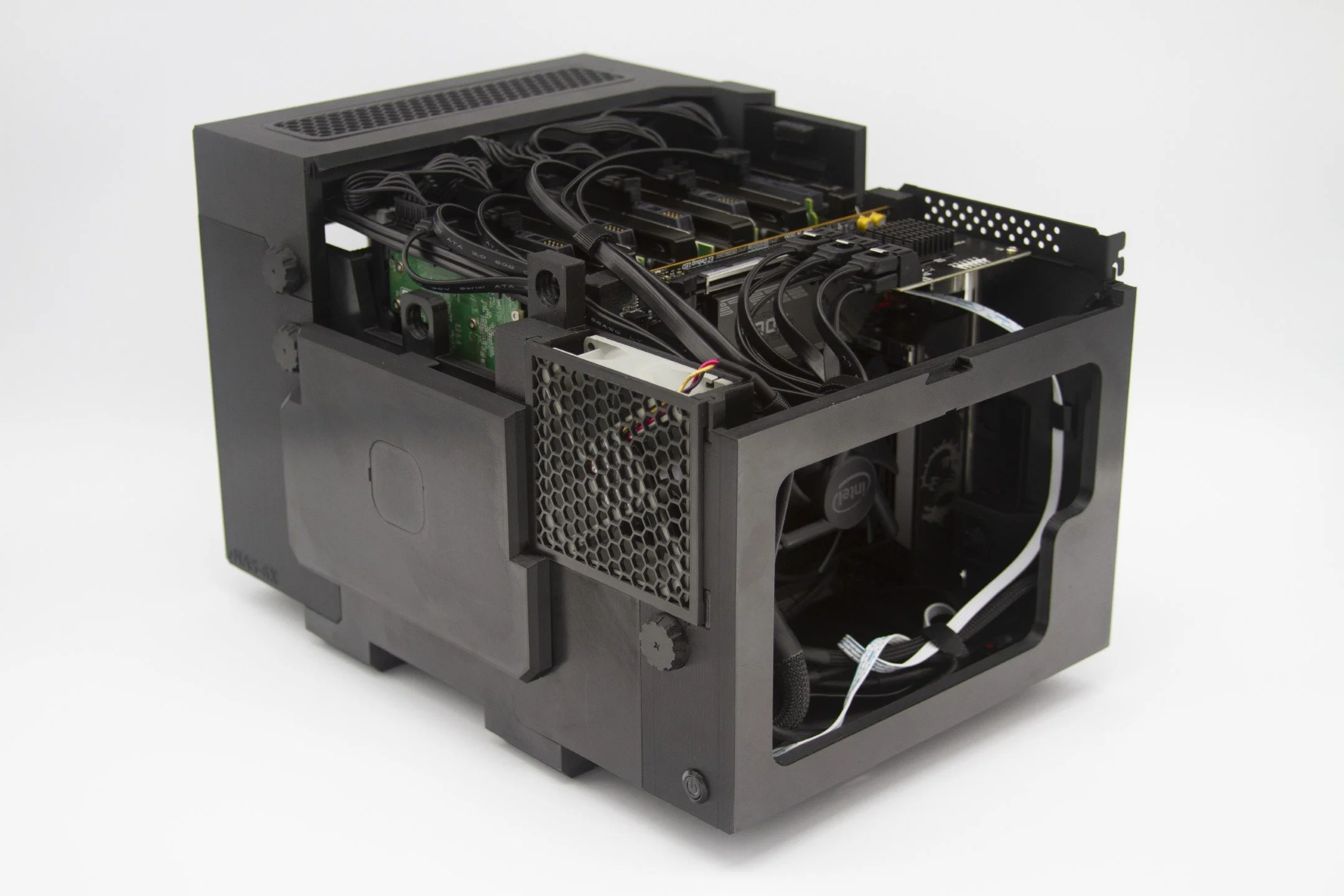

DIRECT HDD COOLING
Standard 80 mm case fans, just place them in the tray and slide them in to keep good airflow on your hard drives.
Case Specs
Motherboard Compatibility:
- Mini-ITX (170 mm x 170 mm)
Max heatsink height:
- 105 mm
Max PCIe/Videocard dimensions:
- Dual-Slot 195 mm (length) x 103 mm (height) x 36 mm (width)
PSU Spec:
- Full-ATX with a maximum length of 155 mm
3.5’’ HDD support:
- x6
2.5’’ SSD support:
- x2
Weight (empty):
- 2 kg
Dimensions:
- 347 mm (L) x 231mm (W) x 221 mm (H)
Dimensions counting the protruding screw heads and feet:
- 347 mm (L) x 256 mm (W) x 234 mm (H)
3D Printing Requirements
Material Requirements:
- 2 kg of PETG or other heat resistant materials like ASA or ABS
3D Printer Requirements:
- 240 mm x 200 mm print bed size (Prusa mk3, BambuLab P1P etc.)
READY TO PRINT?
Get the full specs and material requirements in any of the following stores!
Fusion360 files are included, mod it in any way you need!
